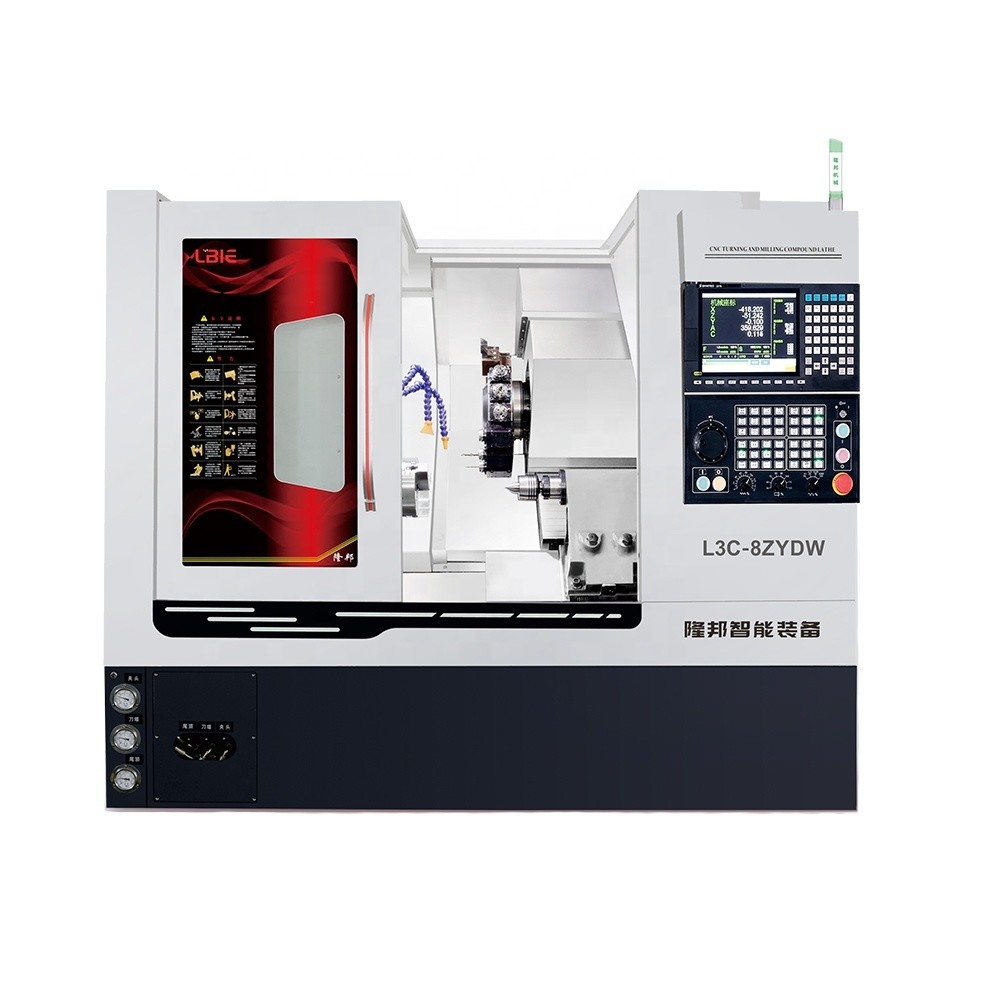

| type: | TURNING CENTER | max. length of workpiece (mm): | 350 |
|---|---|---|---|
| machining capacity: | Heavy Duty | max. weight of workpiece(kg): | cnc lathe |
| width of bed (mm): | 35 mm | no. of spindles: | Single |
| number of axes: | 5 | travel (x axis)(mm): | 250 mm |
| travel (z axis)(mm): | 350 mm | positioning accuracy (mm): | ±0.003 |
| repeatability (x/y/z) (mm): | ±0.003 | place of origin: | Guangdong, China |
| dimension(l*w*h): | 2300*1550*2000 | brand name: | LBIE |
| model number: | L3C-8ZYDW | voltage: | 380V |
| cnc control system: | FANUC\Syntec | tool post stations: | 12, 15 |
| weight (kg): | 4000 | warranty: | 1 Year |
| key selling points: | High cost-effectiveness | machinery test report: | Consult us |
| video outgoing-inspection: | Consult us | range of spindle speed(r.p.m): | 0 - 4000 r.p.m |
| cutting torque: | 86 N.m | Lubrication Form: | Oil lubrication |
| Hydraulic System: | 4 Channels | Tailstock Form: | Hydraulic TailStock |
| Rapid Feedrate: | 22m/min | CNC or Not: | CNC |
| Turret Driven Type: | Servo Motor | Max. Live Tool Speed: | 4000rpm |
| Showroom Location: | None | Spindle Bore(mm): | 51 |
| Max. Spindle Speed (r.p.m): | 3000 | Warranty of core components: | 1 Year |
| ハイライト: | スマートミールターンCNCマシン,パーソナライズされたミールターンCNCマシン,オーダーメイドの水平斜床回転機 |
||
|
CNCでもなくとも
|
斜面ベッド
|
水力系
|
|
CNC
|
斜め
|
チャンネル
|
